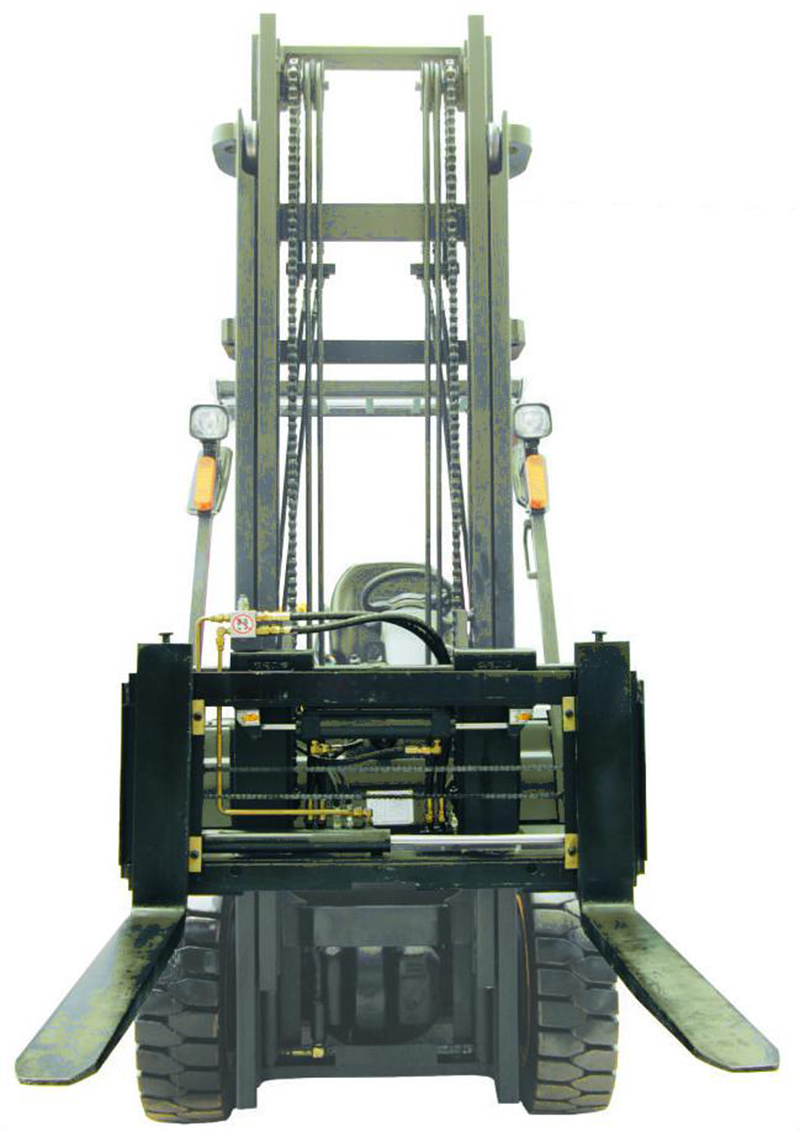

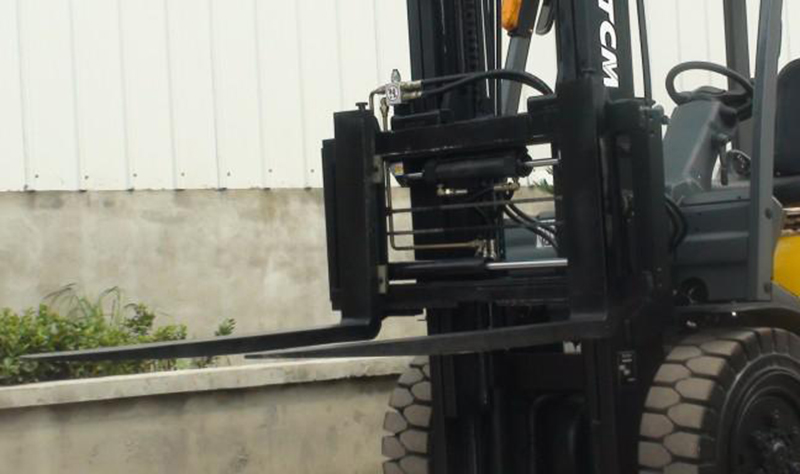

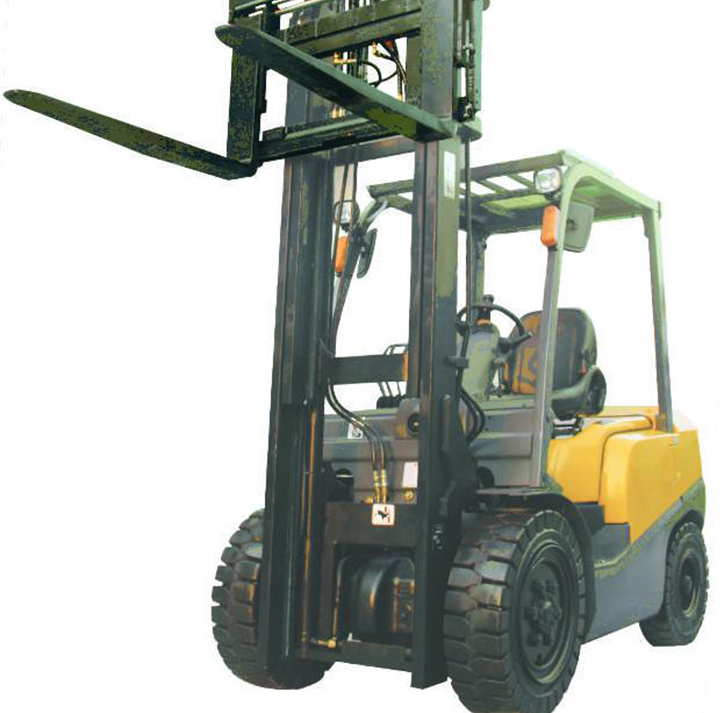

A.Integral sideshifting fork positioner

    Integral sideshifting fork positioner integrated the sideshifter, fork positioner and fork carrier into a frame, is widely used in distribution, warehousing and manufacturing operations, this high visibility fork positioner allows the driver to adjust the forks accurately without leaving the seat, greatly improves the flexibility and moving efficiency.

Features:

Excellent driver visibility and safe & reliable operation;
Combined fork positioner and sideshifter together, large carrying capacity, compact structure and light weight;
Engineering plastic ensures the slide bearing durable and smooth moving;
Adjustable fork carrier for various forks;
No-welding installation, just connected to inner mast frame directly, same as installation of fork carrier,easy and simple for maintenance.

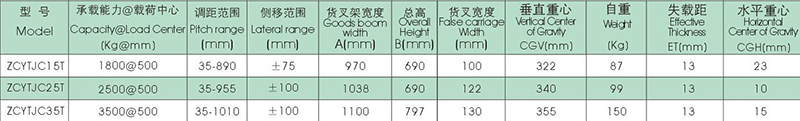

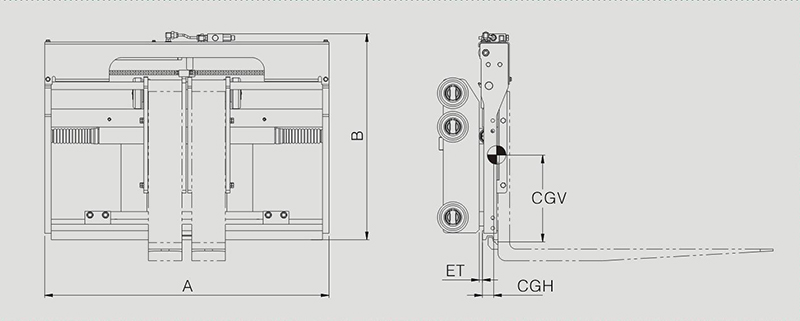

Technical Data:

Remarks:

1. The installation same as fork carrier, please get the mounting dimensions from factory of forklifts;
2. Please get the actual comprehensive carrying capacity of forklifts and their attachments from the factory;
3. Matching this attachment requires two more oil circuits for the forklift;
4. The length of forks is no more than 1525mm;
5. The above types are the common products of Handbarow, customized solution is available, please contact our sales representative.

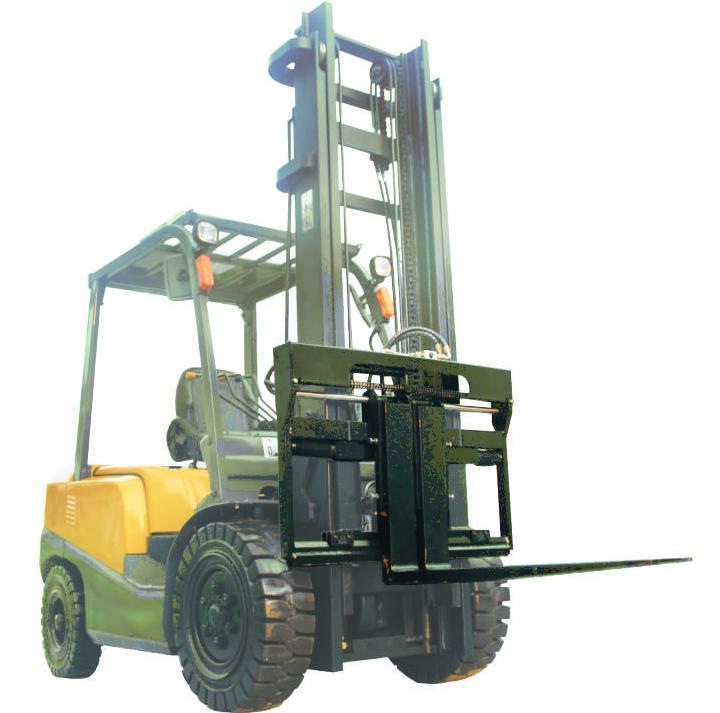

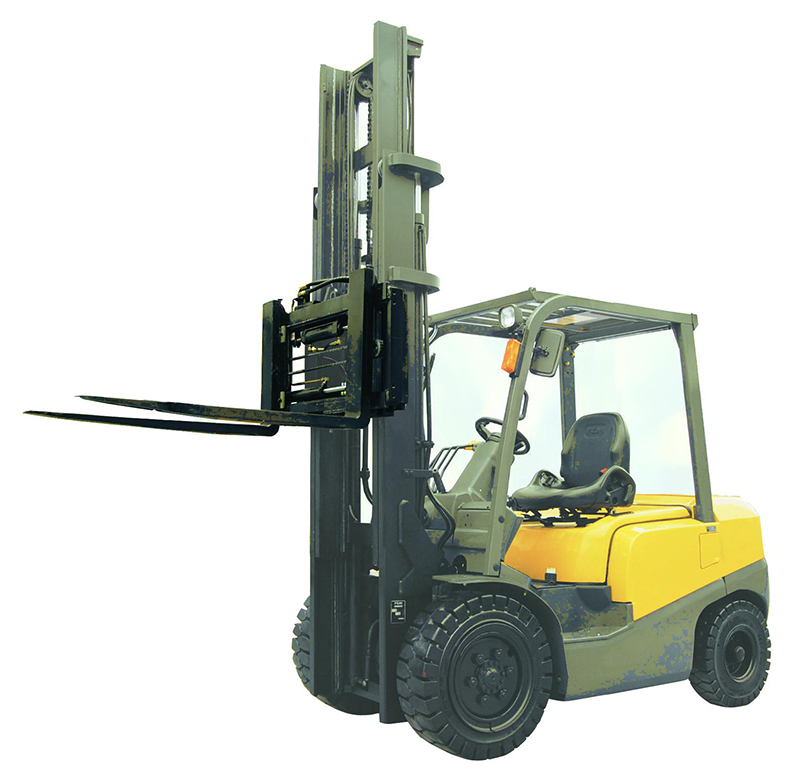

B.Suspension type sideshifting fork positioner

Suspension type sideshifting fork positioner is widely used in distribution, warehousing and manufacturing operations, this high visibility fork positioner allows the driver to adjust the forks accurately without leaving the seat, greatly improves the flexibility and moving efficiency.

Features:

Excellent driver visibility and safe & reliable operation;
Ingenious cylinder layout makes it be fully protected during the operation;
Engineering plastic ensures the slide bearing durable and smooth moving;
Adjustable fork carrier for various forks;
Quick assembling type frame structure, no-welding installation, easy and simple for maintenance.

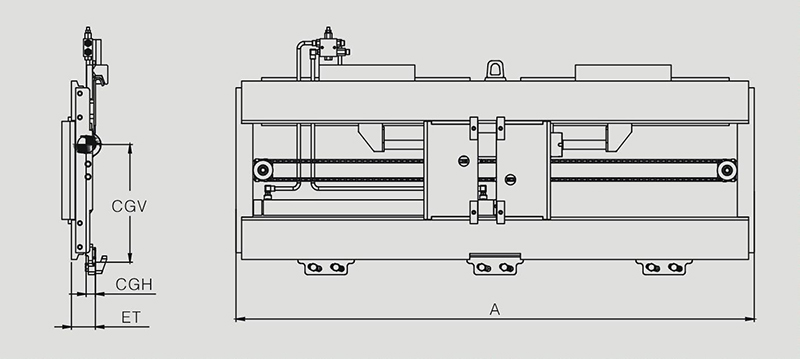

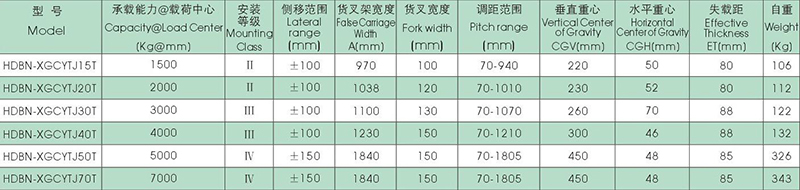

Technical Data:

Remarks:

1. Please get the actual comprehensive carrying capacity of forklifts and their attachments from the factory;
2. Matching this attachment requires two more oil circuits for the forklift;
3. The length of forks is no more than 1525mm;
4. The above types are the common products of Handbarow, customized solution is available, please contact our sales representative.
