Tipping fork
Application:

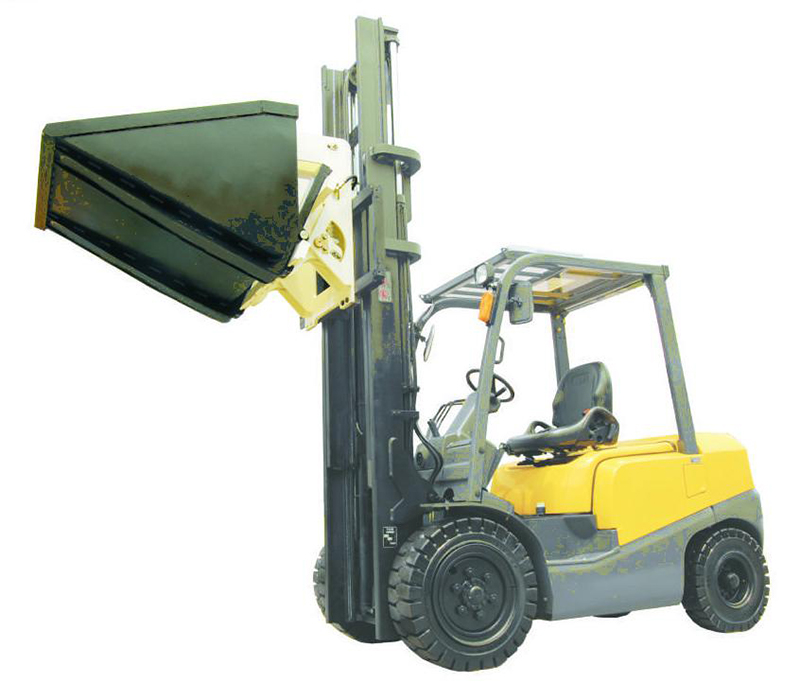

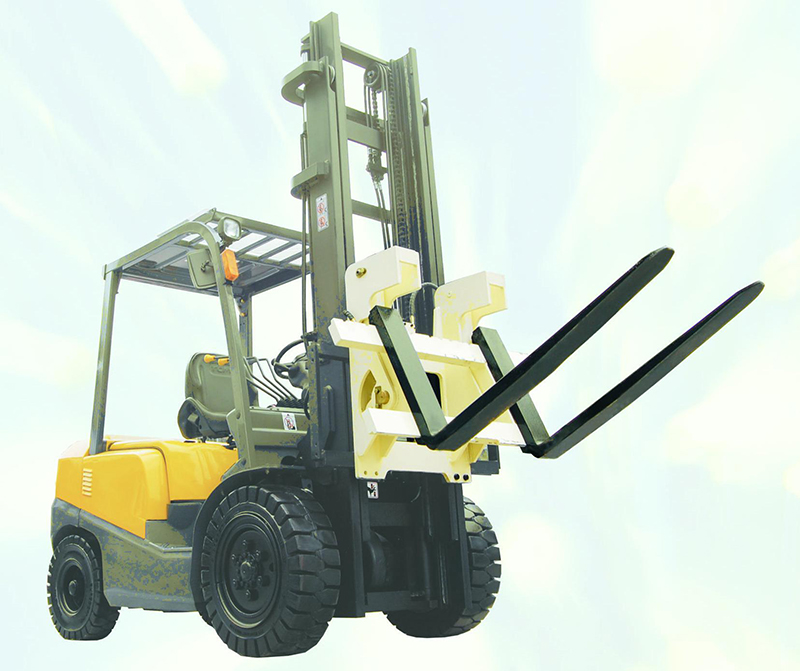

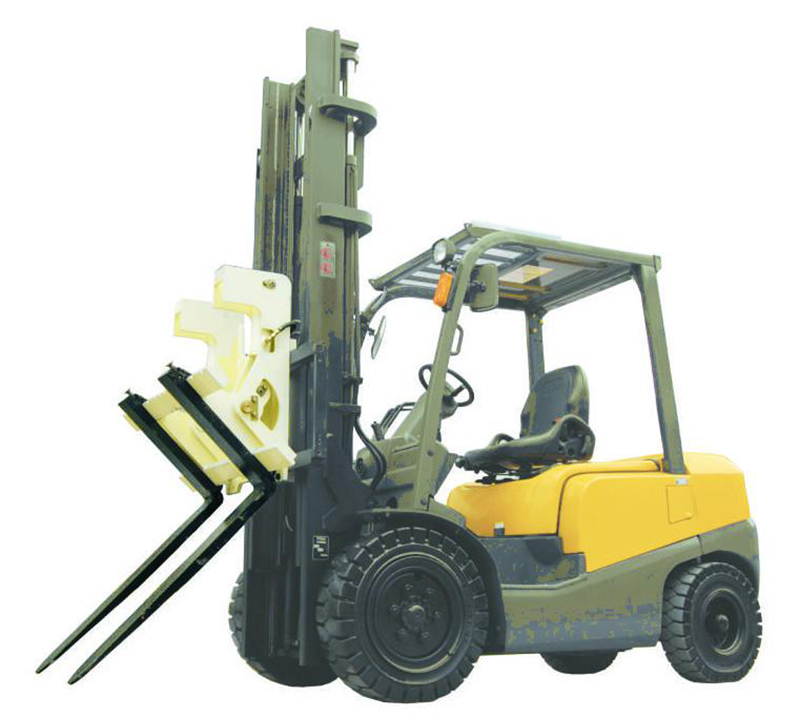

Tipping fork can increase the fork carrier leaning and sloping, realized tilt up 25°, tilt down 45°. Use it in conjunction with bucket, can efficiently tip over the goods in the container, extensively use on goods recycle, fertilizer, sediment, plastic grain, etc.

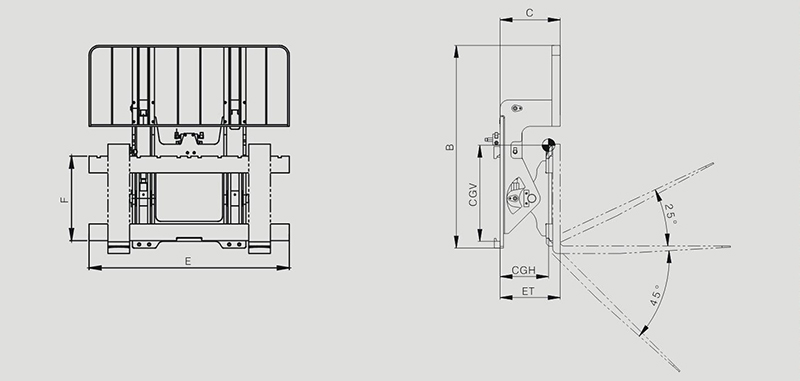

Technical Data:
|
Model |
Capacity@Load Center (kg@mm) |
Mounting Class |
Frame Height B(mm) |
Frame Width C(mm) |
Fork Carrier Width E(mm) |
Fork Carrier Height F(mm) |
Weight (kg) |
Effective Thickness ET (mm) |
Horizontal Center of Gravity(mm) |
|
QFC20T |
2000@500 |
II |
1100 |
345 |
1100 |
407 |
232 |
205 |
142 |
|
QFC30T |
3000@500 |
III |
1241 |
360 |
1200 |
508 |
270 |
220 |
176 |
Remarks:
1. Please get the actual comprehensive carrying capacity of forklifts and their attachments from the factory;
2. Matching this attachment requires one more oil circuit for the forklift;
3. The models list above are the regular products of Handbarow, other types can also be supplied in accordance with different brands or models of forklifts and special working conditions.
